How To Set Up Freightview for WooCommerce

Let's take a look at how to put your LTL freight rates in front your customers on your WooCommerce store with Freightview for WooCommerce.

WooCommerce is an E-Commerce store that runs on top of WordPress. So naturally, you can get the plugin via our listing in the official Wordpress Plugin Directory or by searching for "Freightview for WooCommerce" in the admin section of your WordPress installation store.

Freightview for WooCommerce installs just like any other plugin, but the setup can be a bit complex, so let's walk through that:

First, if you don't have a WooCommerce store setup already and you want to read more about that, checkout the WooCommerce Getting Started Guide.

If you don't have a Freightview account, you'll need one to get this setup, but don't worry, we offer a 14-Day no risk free trial. So what are you waiting for? Sign up!

Once you have your Freightview account set up and probably some of your rates returning inside Freightview already (we're pretty fast) you'll need to activate the plugin on the Plugins Tab on the Wordpress dashboard.

freightview for woocommerce

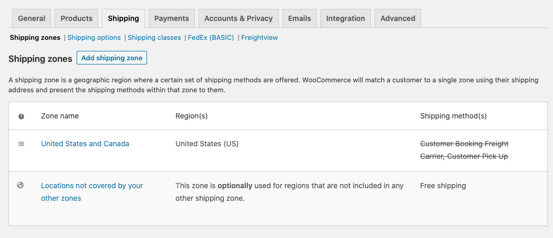

Once you activated the plugin, you can proceed to the WooCommerce Settings page and select the Shipping tab, which should land you on a page below.

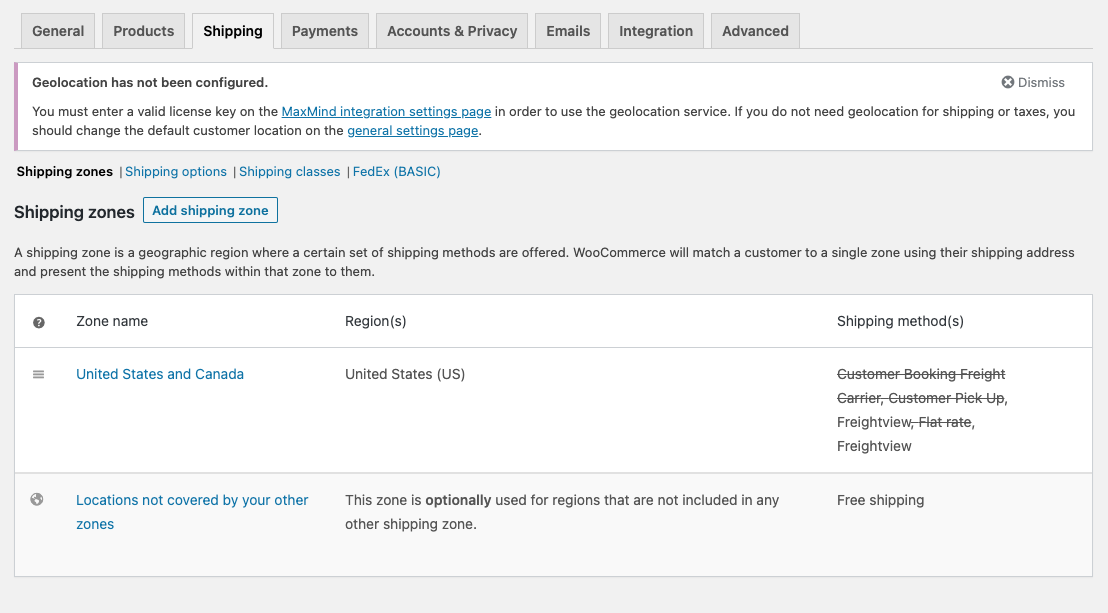

Screen Shot 2021-04-07 at 11.43.09 AM

Once you're here you will want to choose your shipping zone, and this is where you will add Freightview as a shipping method.

Screen Shot 2021-04-07 at 11.45.02 AM

Click "Add shipping method" and you will then see a dropdown with the ability to select 'Freightview'

Screen Shot 2021-04-07 at 11.46.22 AM

If you don't see the Freightview shipping option on this page, something went wrong when installing or activating the plugin. Try those steps again and if it still doesn't work, email us at woocommerce@freightview.com.


To get Freightview configured, you'll need your Freightview API Key. For details on where to get your API Key from inside of Freightview, visit this page.

Once you have your Freightview API Key, you're ready to do some configuring. Click on the Freightview shipping option across the top of the WooCommerce Settings page.


api key

On this page you'll need to:

  • Paste the API Key you previously retrieved into the API Key field
  • Check the box next to "Enable this shipping method"
  • Enter an Origin Zip Code
  • Select the Origin Pickup Type
  • Limit the number of rates shown to the user by changing the Max Rates field
  • Change how the rates display to the user in the _Rate Description_ field
  • Select some or all of the Shipping Classes from the table and add them to your WooCommerce store.
  • Decide how to handle destination accessorials
  • Tweak the minimum shipping weight to match your needs

This page also contains a tool that will allow you to send a test quote to our API and look at what rates are returned.

test quote

After you're receiving rates from the Freightview API, you'll need to set up some products to have the necessary attributes to return rates for LTL shipping. Edit a pallet and go to the Shipping tab under Product Data.

Freightview requires that a weight be set. Some carriers will return rates without a Shipping Class, but most won't, or they won't be as accurate. We highly recommend selecting a Shipping Class. Dimensions are optional for LTL rating, but if we have them, the quotes we return will be more accurate.

Do this for every product that you want to be able to quote shipping for via Freightview.

Once you have a few products setup, your customers should start being able to get a quote for shipping costs, using your freight rates.

It works in the shopping cart, and when your customer checks out.
